RP-CC950 Metal faced rockwool roofing composite panel
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Description
-
We can provide PU, PIR, rock wool, glass wool, EPS, XPS, paper honeycomb, glass-magnesium board paper honeycomb and other core materials such as color steel sheet, galvanized sheet, aluminum-zinc-plated light sheet, stainless steel, printed steel sheet, aluminum foil paper, PVC, aluminum plate and so on more than a dozen kinds of dressings, more than twenty kinds of board types of composite panels.
Heat transfer coefficient K
Thickness(mm) 50 75 100 150 200 Heat transfer coefficient K 0.749 0.530 0.411 0.268 0.210 Kcal/㎡-h.°C 0.664 0.456 0.353 0.230 0.181 Roof plate
Thickness(mm) 50 75 100 150 200 Plate weight(kN/㎡) 0.169 0.201 0.232 0.296 0.360 Effective width(mm) 950 Length(mm) Length arbitrary, limited to transportation conditions, generally ≤ 15000 Wall panel
Thickness(mm) 50 75 100 150 200 Plate weight(kN/㎡) 0.159 0.191 0.223 0.287 0.351 Effective width(mm) 1150 Length(mm) Length arbitrary, limited to transportation conditions, generally ≤ 15000

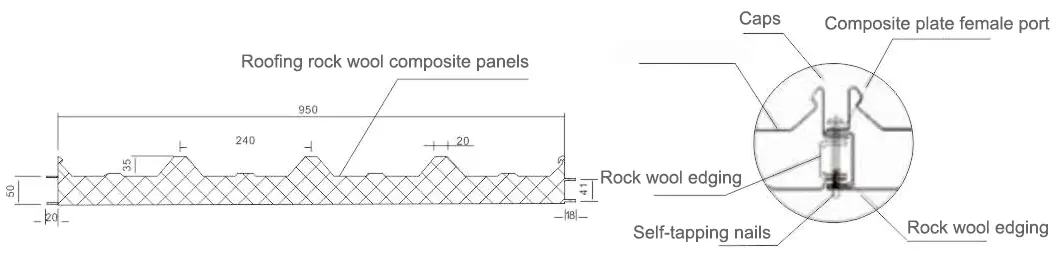

RP-CC950 Metal faced rockwool roofing composite panel
