Vertical lock seam 470 roof system
RSS470 system is based on the American system, combined with China's actual situation of the improved type, some of the supporting components in the system has been improved, set the advantages of each family in one, more perfect.

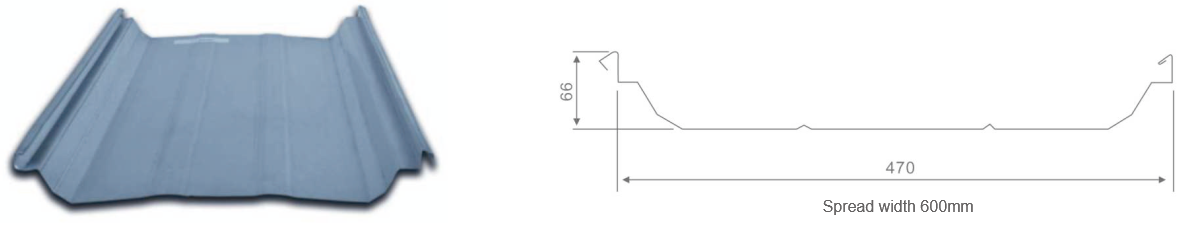

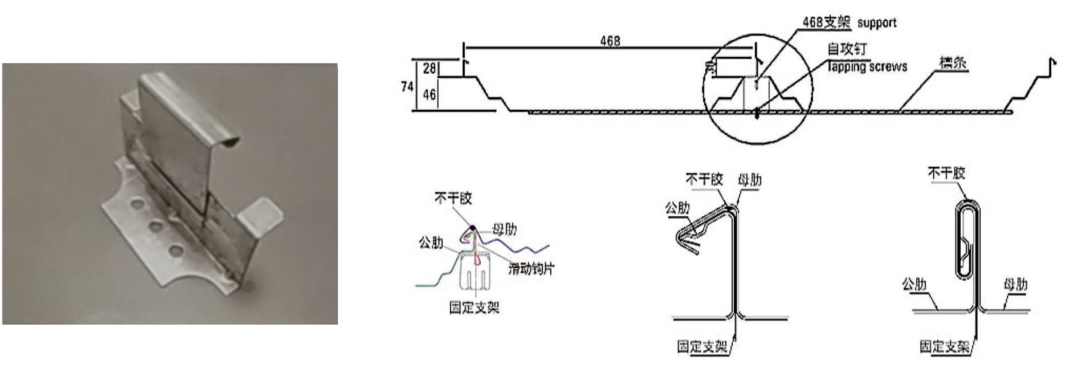

Pressure steel plate model RSS470 Usage Effective covering width(mm) 470 Spreading width(mm) 600 Plate thickness(mm) 0.5 0.6 Concealed roof panels Section moment of inertia(cm4/m) 11.52 14.31 Cross-sectional resistance moment(cm3/m) 9.21 12.45 470 Pressure plate 360° occlusion diagram
◣ Unique hidden bracket installation, no screw penetration on the system surface, the connection between bracket and board is slip type unique design, overcoming the displacement of the extra long board and fixed bracket due to thermal expansion and contraction.
◣ 360° upright seam occlusion male and female ribs, rib height 66+1mm, professional gluing equipment can provide seams prefabricated self-adhesive, so that the system has excellent waterproof performance in similar systems.
◣ A wide range of metal pressings are available and a wide range of accessory products with equal longevity are available.
◣ Process-oriented equipment box-type shipment and professional operating skills ensure accurate on-site pressing for large projects.
